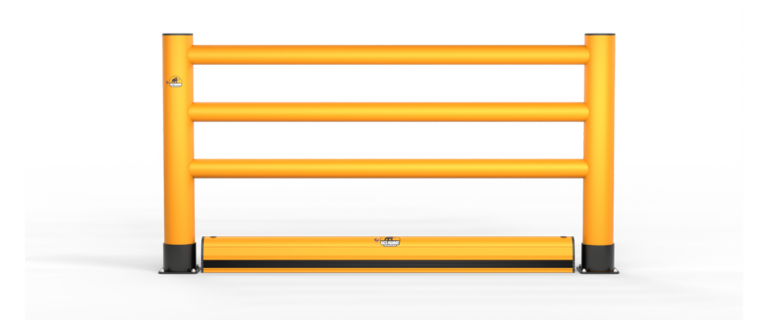

Rack-Mammut® Pedestrian Handrail Barrier EXTRA
Rack-Mammut® Pedestrian Handrail Barrier EXTRA
Set with Additional Under-Ride Protection – Rack-Mammut® Floor Rail Barrier.
The Rack-Mammut® Pedestrian Handrail Barrier provides an ideal solution for separating
pedestrian areas from vehicle zones and other potential hazard areas – both indoors and
outdoors. The optional Rack-Mammut® Floor Rail Barrier extends under-ride protection to
ground level and reliably prevents under-run collisions
Product details:
- Rack-Mammut® Pedestrian Handrail Barrier
• Height: 1,100 mm
• Bollard: Ø 144 mm
• Connector tube: Ø 90 mm
• Base plate (WxLxH): 170 mm x 170 mm x 12 mm
• Standard lengths: 2 m (Centre of foot to centre of foot), expandable by 2 m each - Rack-Mammut® Floor Rail Barrier
• Hight: 160 mm
• Width: 130 mm
• Length: 1.70 m
All impact protection products can be individually customized to meet your specific requirements.
Installation is done via the base plate using ground anchors. Mounting materials are included in the delivery.
Tested and certified by TÜV and PAS 13.
